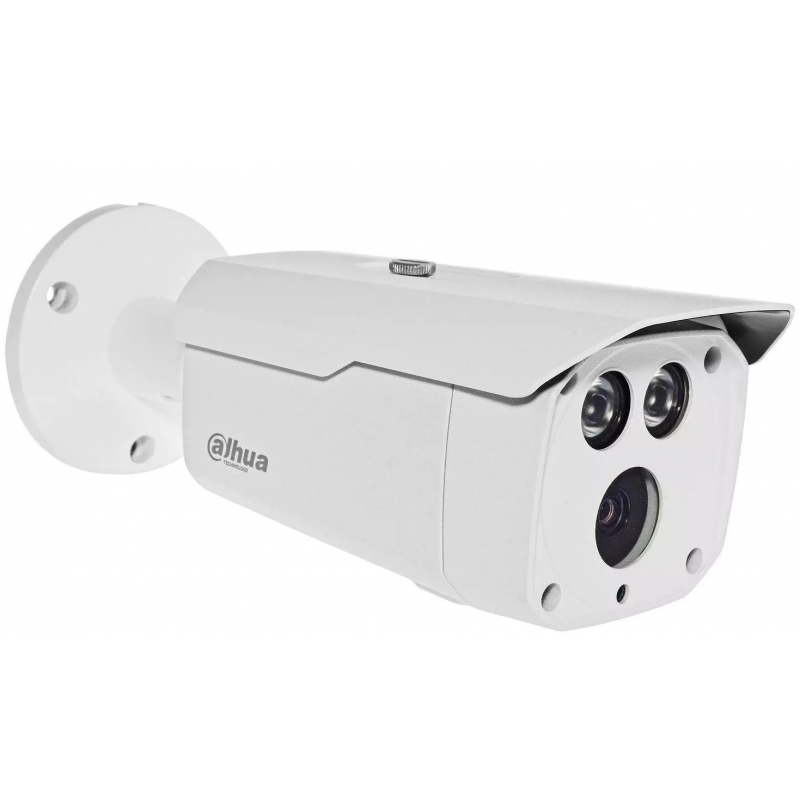

Caméra 2MP HDCVI Métallique IR 80m

HAC-HFW1200D

1/2.7" 2MegapixelCMOS

25/30fps@1080P, 25/30/50/60fps@720P

High speed, long distance real-time transmission

HD and SD switchable

OSD Menu, control over coaxial cable

DWDR, Day/Night(ICR),AWB, AGC, BLC, 2DNR

3.6mm fixed lens (6mm, 8mm optional)

Max. IR LEDs length 80m, Smart IR

IP67,DC12V

Plus de détails

3 Produits

230,000DT

Disponible

ModelDH-HAC-HFW1200DPDH-HAC-HFW1200DN
Camera
Image Sensor1/2.7" 2Megapixel CMOS
Effective Pixels1920(H)×1080(V)
Electronic Shutter1/25~1/100000s1/30~1/100000s
Video Frame Rate25/50fps@720P; 25fps@1080P30/60fps@720P; 30fps@1080P
SynchronizationInternal
Min. Illumination0.02Lux/F2.0, 0Lux IR on
Video Output1-channel BNC high definition video output/ CVBS standard definition video output (Can switch)
Camera Features
Max. IR LEDs Length80m, Smart IR
Backlight CompensationDWDR
Day/NightAuto(ICR)/Color/B/W
Noise Reduction2D
OSD MenuSupport
Lens
Focal length3.6mm (6mm, 8mm)
Angle of ViewH:89.9º(59.4º/41.4º)
Mount TypeM12
General
Power SupplyDC12V±25%
Power ConsumptionMax 6.8W
Working Environment-40°C~+60°C/ Less than 95%RH (no condensation)
Transmission DistanceOver 500m via 75-3 coaxial cable
Ingress ProtectionIP67
Dimensions(W×D×H)241.8mm×90.2mm×83.7mm
Weight0.635kg
MaterialMetal
Résolution2 MP
Distance80m
